Short Series Gap Gage
Short Series Gap Gage - Image 2
Short Series Gap Gage - Image 3

Short Series Gap Gage

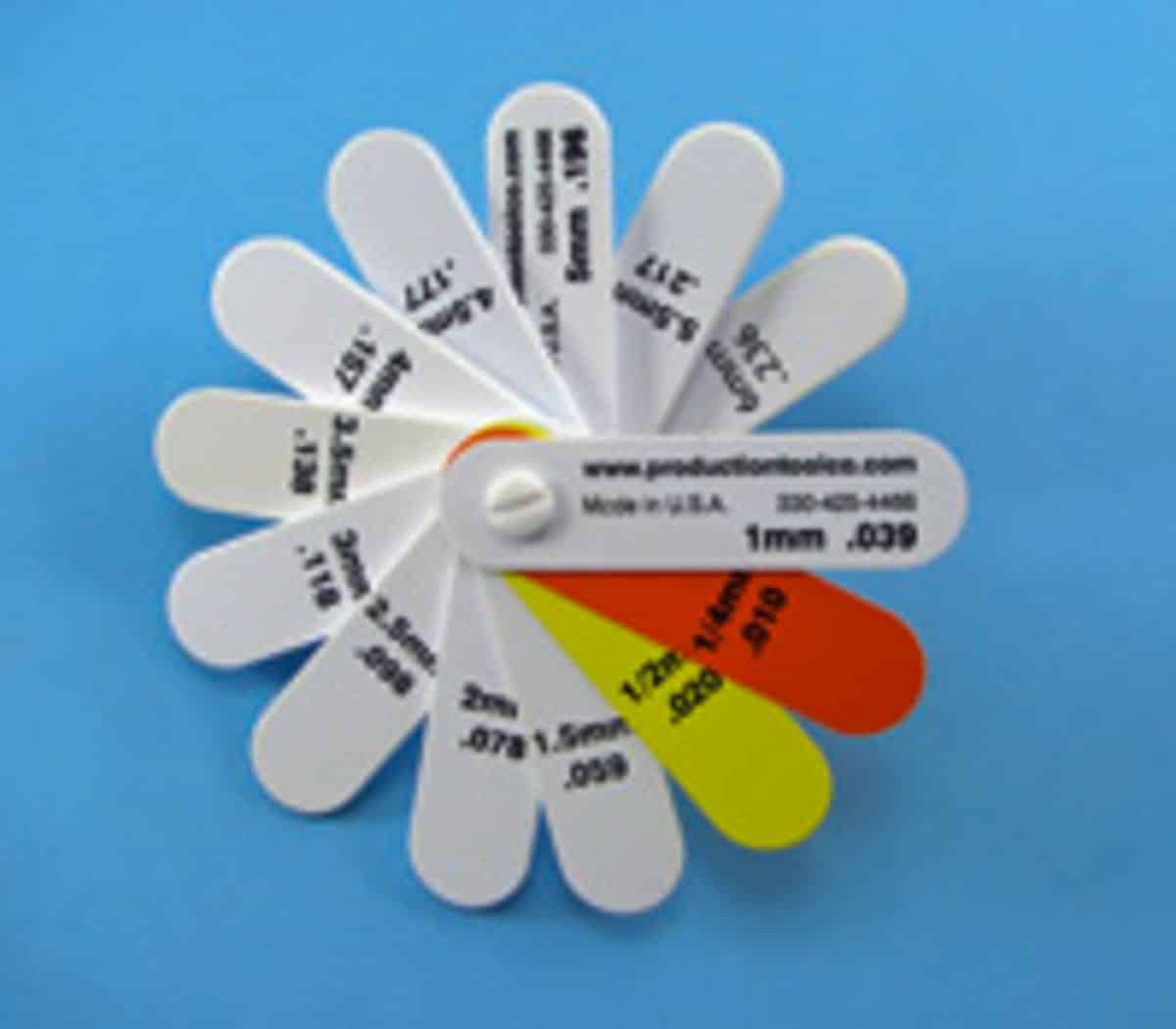

“No-Mar” short series plastic gap gages can be furnished in any combination using the following thickness sizes. 0.1mm, 0.2mm, 0.25mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.75mm, 0.8mm, 0.9mm, 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm.

Categories:

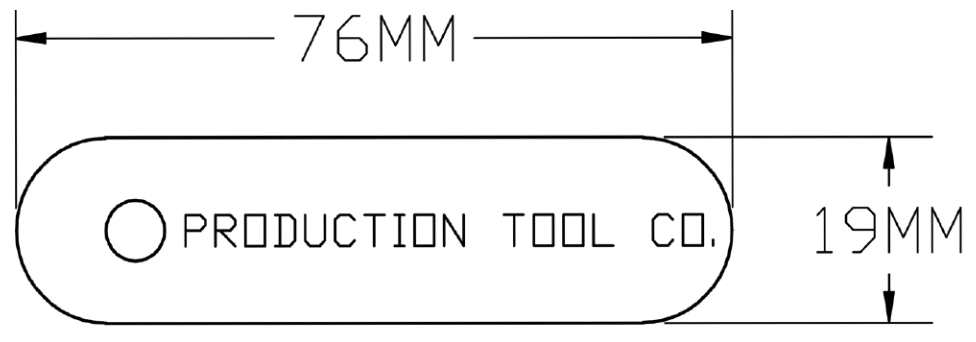

Drawing

Build & Request Your Gage Sets

NO-MAR Gage Request
Build custom short/long series gage sets
Build -
Step 1 of 5
Step 1
Choose Series
Pick Short or Long series to begin.
Step 2
Build One Set
Use one row for each leaf. Change any previous leaf from its dropdown.
Leaves In This Set
Pick the size for each leaf. Add another row when this set needs another leaf.
Maximum 15 leaves per set
Selected sizes
0 leaves
Step 3
Heads Up
We’ll remind you to protect thin leaves before setting quantity.
!
Caution
Thin leaves exposed

Starting or ending the set with a thin blade risks bending it. Move a 1.0 MM or larger leaf to the top and bottom.

Drag to reorder below or let us restack them automatically.

Your stack
    Step 4
    Add This Set To Your Request
    Choose quantity, add this set to the request, then add another set or continue to contact info.
    Set Quantity

    Certified & Serialized sets are ±5% of indicated value. Reference-only sets are ±10%.

    Sets In This Request (0)
    Step 5
    Provide Contact Info
    Tell us where to send your quote.
    Matching Part Numbers
    Confirm Stack Order

    Review your stack from top to bottom. Drag to reorder if needed - the first size listed is the top leaf.

    Caution Thin leaves exposed

    3D Preview
    Top
      Scroll for more
      Bottom
